A winning rake  + roller combination

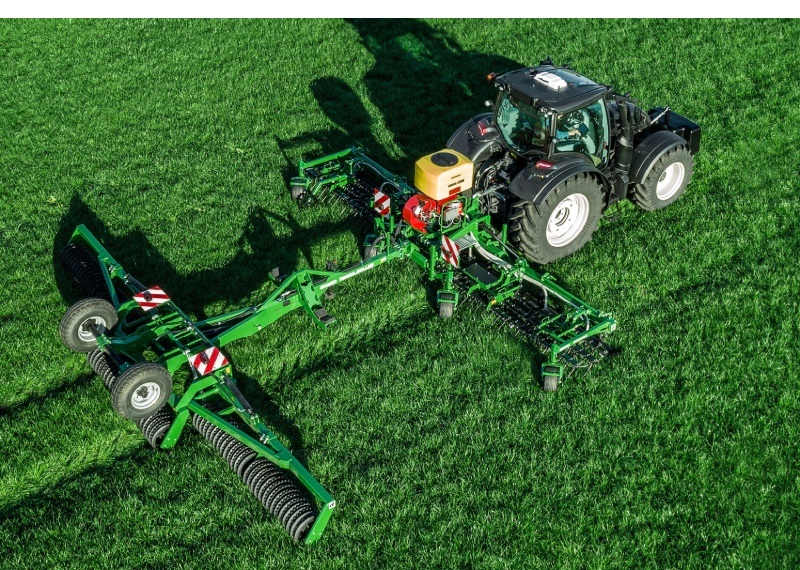

The combination of the GREEN.RAKE expert and TERRA.ROLLER expert brings together the advantages of both machines and creates a multi-functional tool for grassland and arable land. The rake and roller can be used together or independently.

The roller can be used for arable farming with or without optional attachments including a levelling bar and knife roller, and the rake works on its own on grassland. Coupling and uncoupling is quick and uncomplicated thanks to the attachment in the lower link hook. The grassland combination is operated simply by two double-acting control valves.


Rake, seed and  roll in a single pass

Add the optional 300 or 500L capacity seeder unit and you have a true all-rounder, able to rake, seed and roll in a single pass. Available with the SEED.CON control interface for operation via your smartphone or tablet, the system is also ISOBUS compatible. A tail wheel, tractor meter cable or radar sensor are further options for speed-dependent sowing.


Safe,  easy transport

The GREEN.RAKE expert + TERRA.ROLLER combination folds quickly and easily down to a transport width of 2.50m or 3.00m depending on model. A compressed air brake system is standard on roller models from 6m upwards.

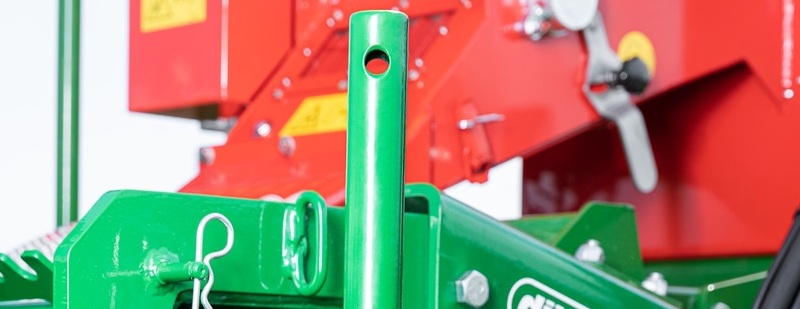

Levelling bar adjustment

The preload on the heavy-duty levelling bar can be easily adjusted to four levels using the setting lever. With a low preload, young grasses can be levelled gently; with a higher preload, the levelling effect can be progressively increased.

PLAY VIDEO

See the GREEN.RAKE expert and TERRA.ROLLER combination in action
