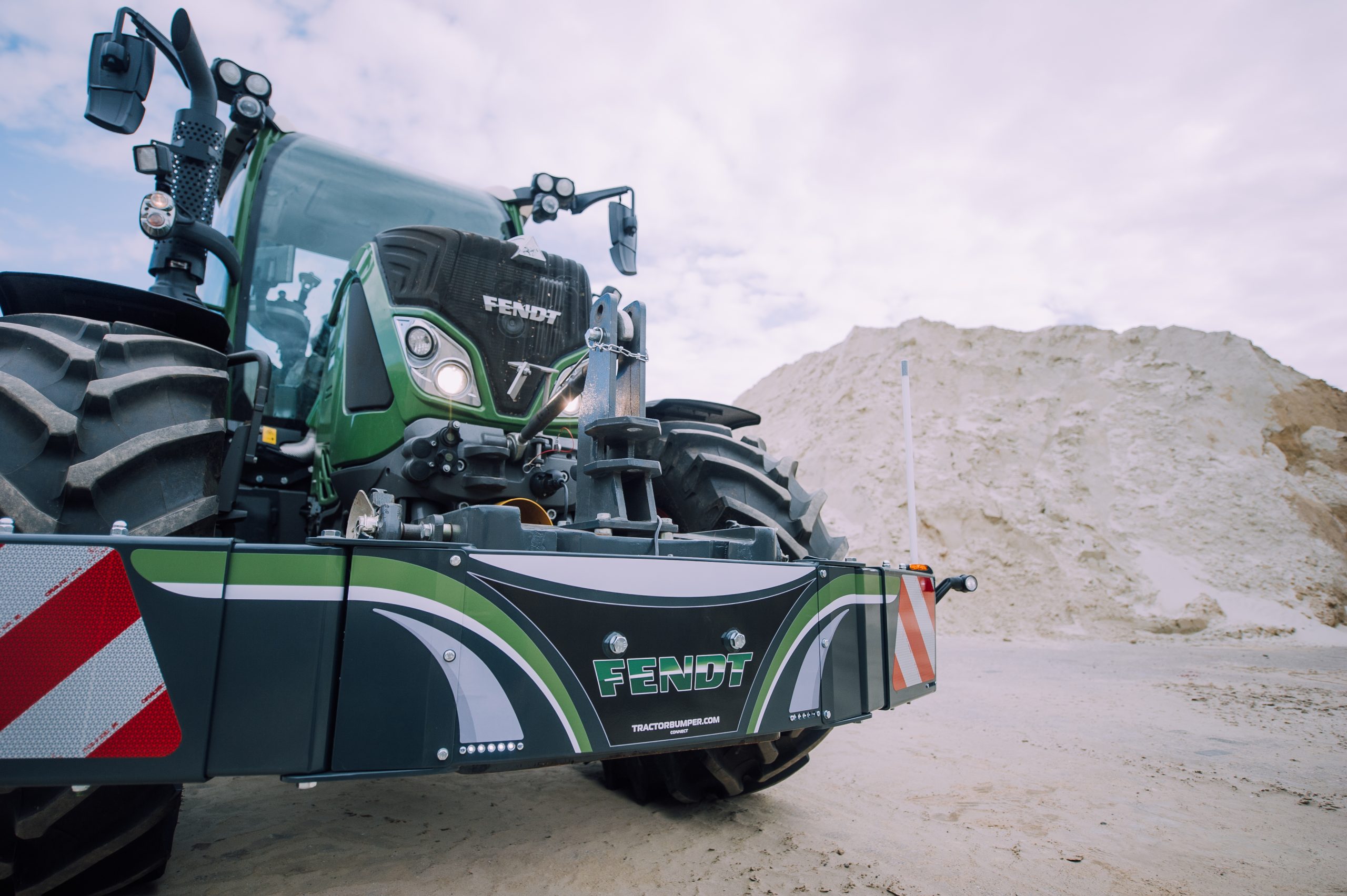

Connect is a bumper that can be attached to a B 600 or 900 weight block or alternatively to a Fendt 870 weight block. It is available for fitting to the weight already mounted on your tractor or you can order the bumper and weight block as a set.

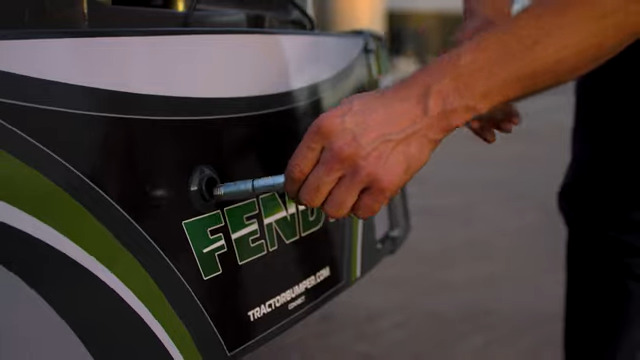

Fitting is quick and straightforward. With the Solo connection kit you can connect the bumper directly to the front linkage with no weight block between. Attaching the Connect bumper to a front weight is by means of 2 x M16 bolts at the front and 2 x M20 bolts to the sides.
An optional assembly pack links the Connect directly to the front lift and allows for the following configurations; bumper with weight, weight without bumper and bumper without weight.

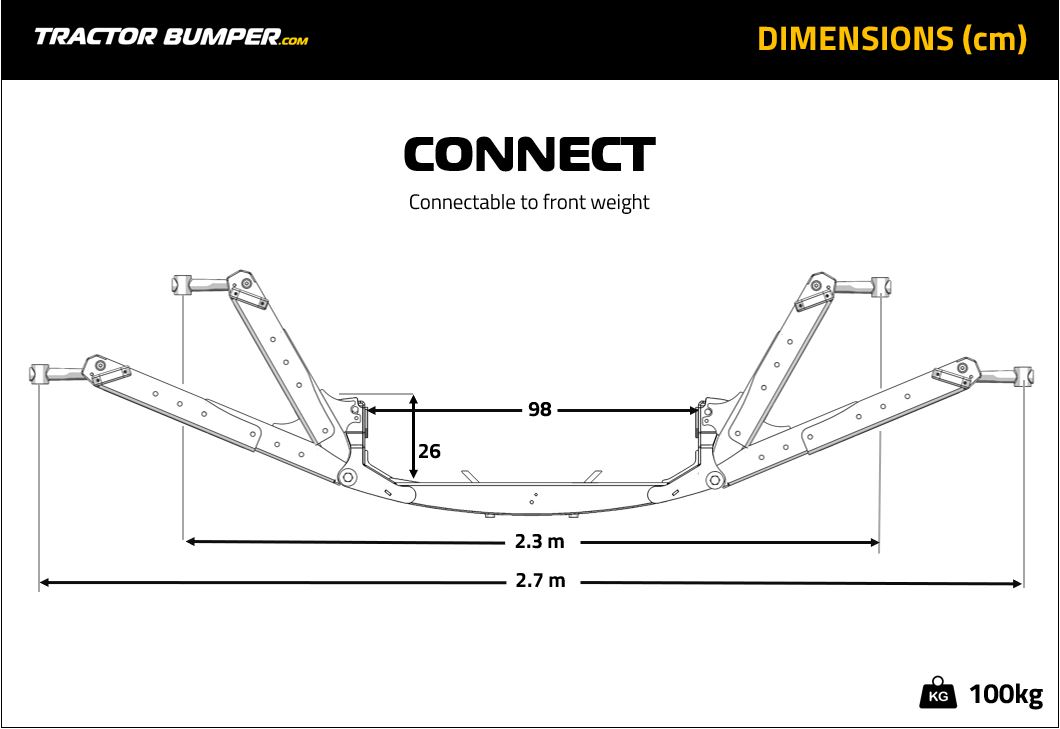

The TractorBumper’s hinged adjustable side panels enable you to vary the overall width of the bumper from 2.3 to 2.7 metres. The bumper itself weighs 100kg. When coupled with a compatible weight block the total front-end weight can be increased to 700kg, 970kg or 1000kg.
With TractorBumper you are also able to adjust the height of the bumper with the front linkage. This allows you to drive with a bumper set at 40cm high, which is the same height as the bumper of a car.

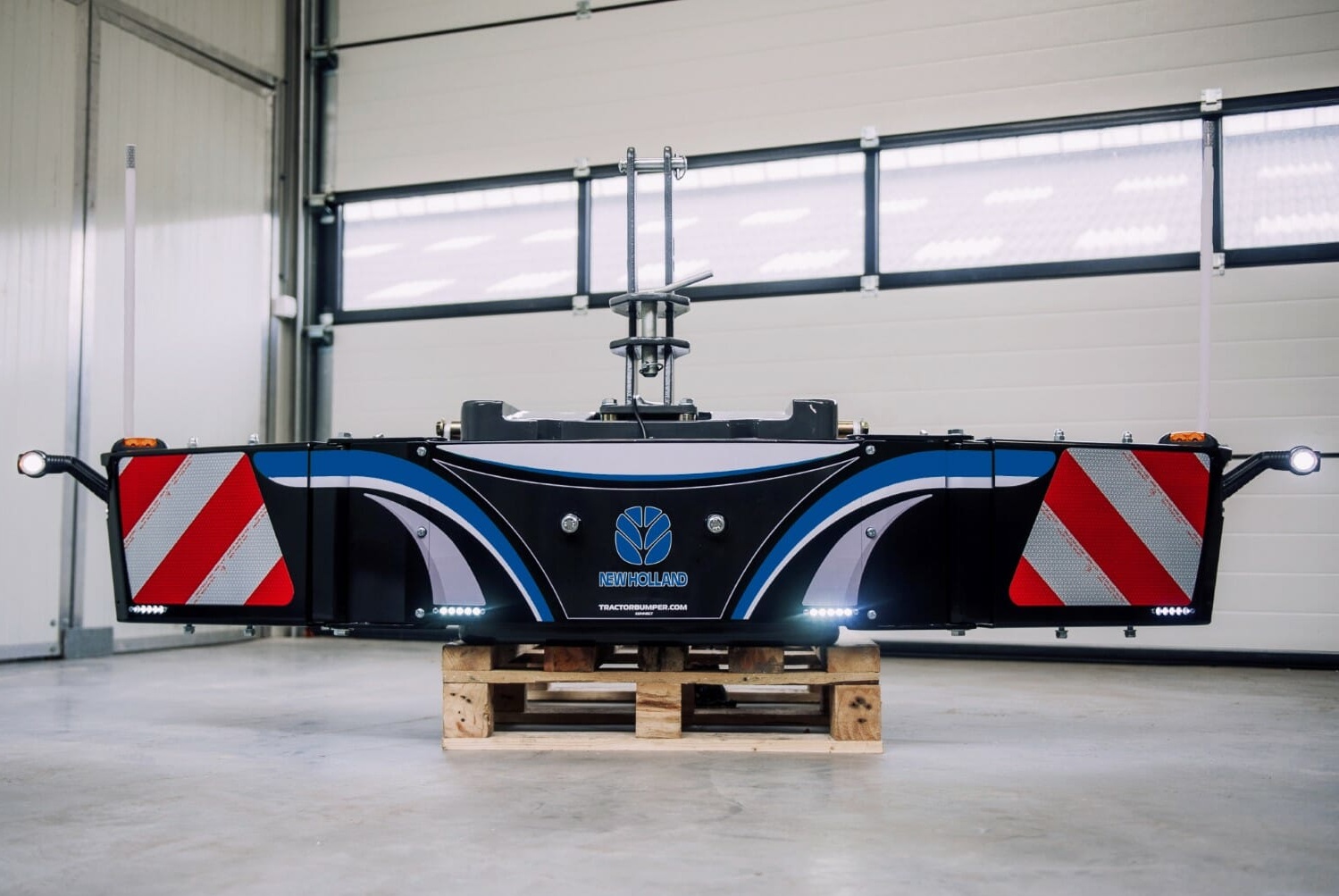

As with every TractorBumper product, Connect incorporates a number of high visibility features to make other road users aware, quickly and clearly, of the true width of your tractor. These include LED contour lights, LED turn indicators, flexible LED outside markers, width marker poles and reflective red and white chevrons. Adjustable side panels also provide increased protection from side-on impacts by reducing the space between the front wheels and the bumper.

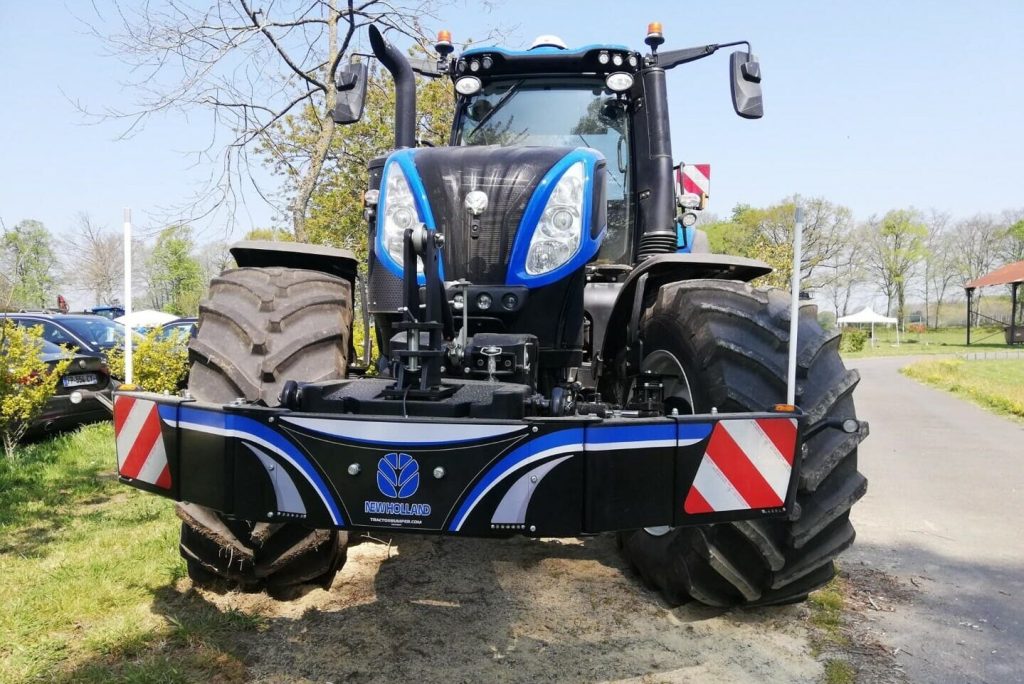

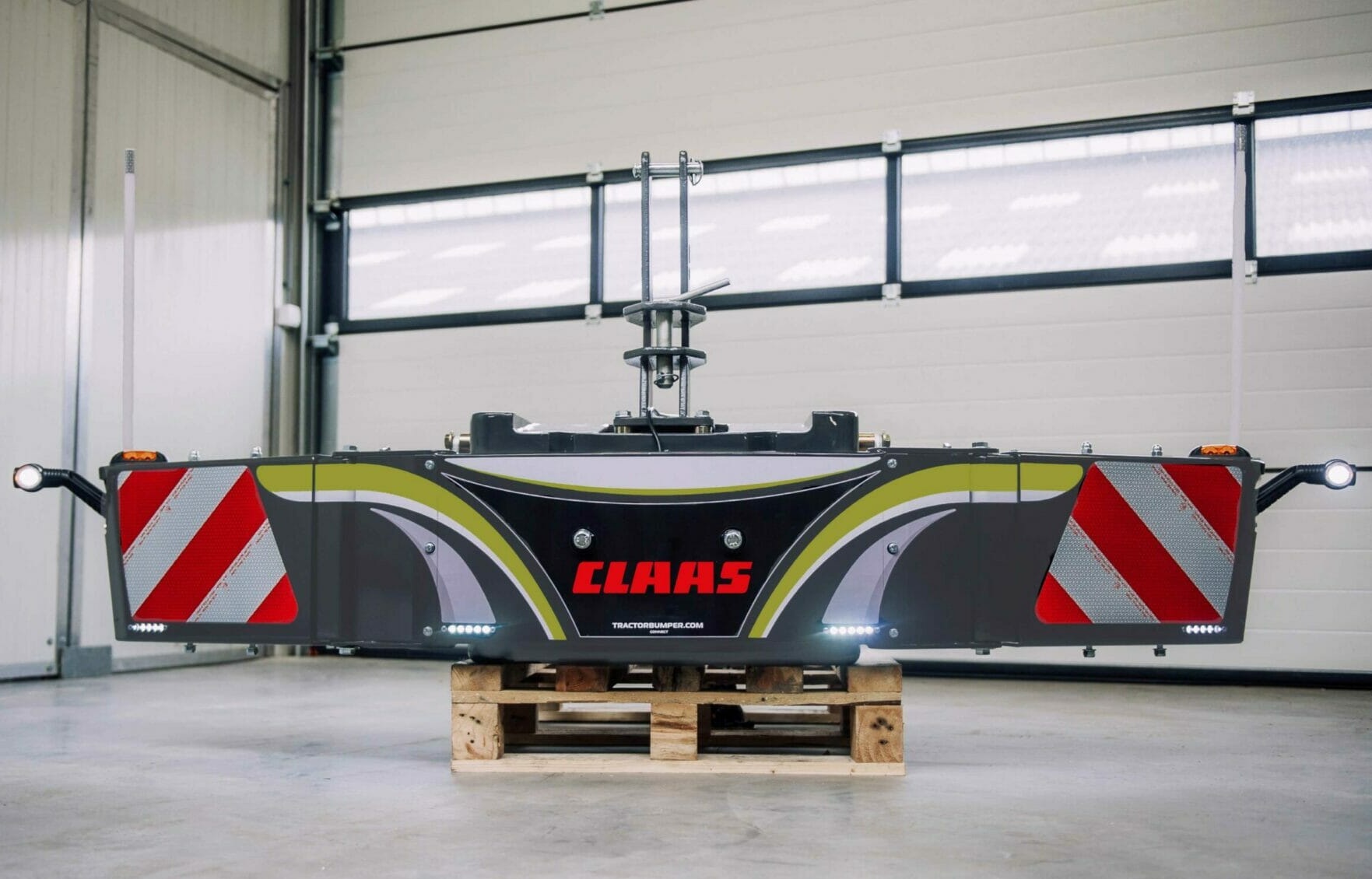

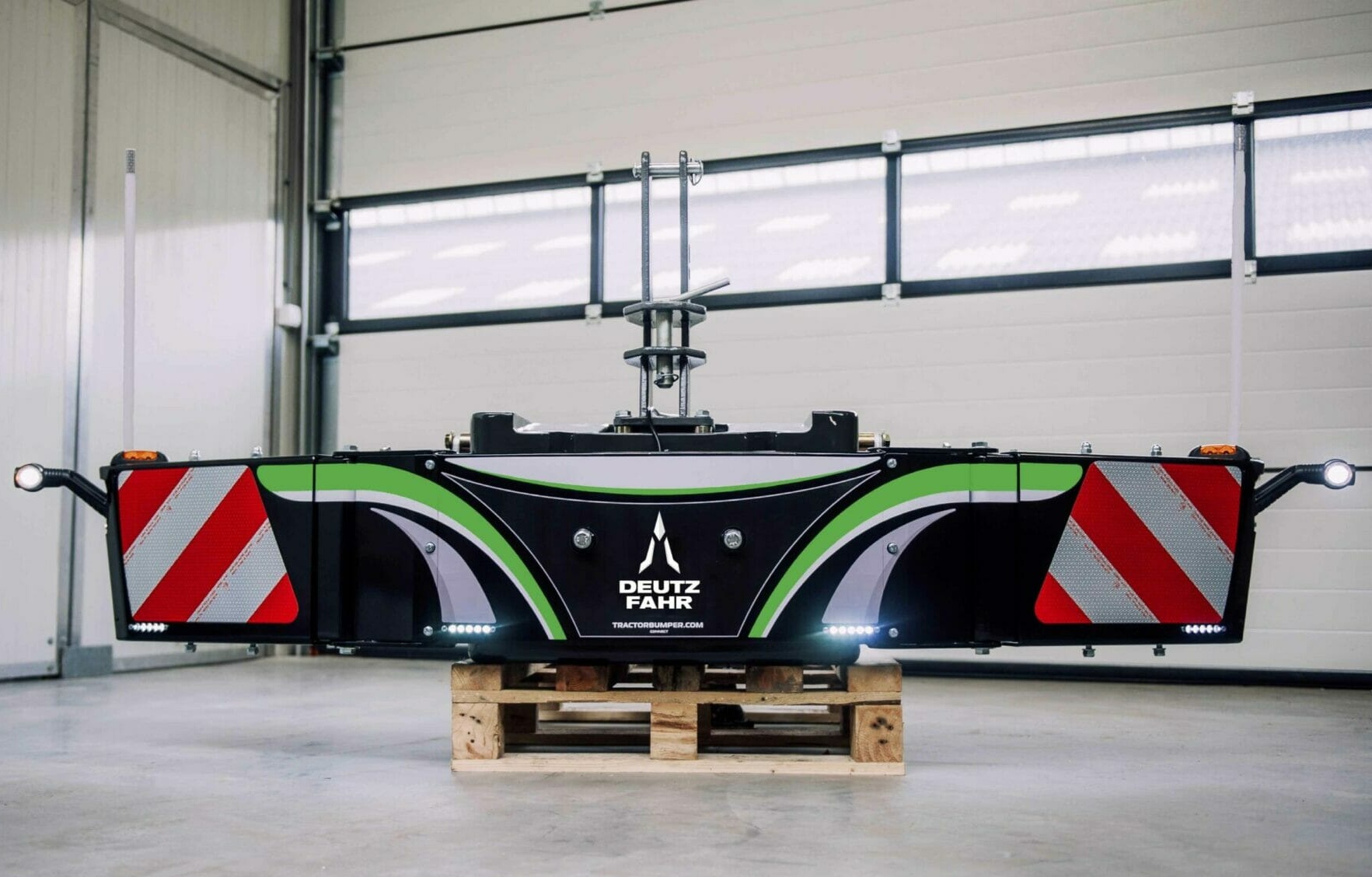

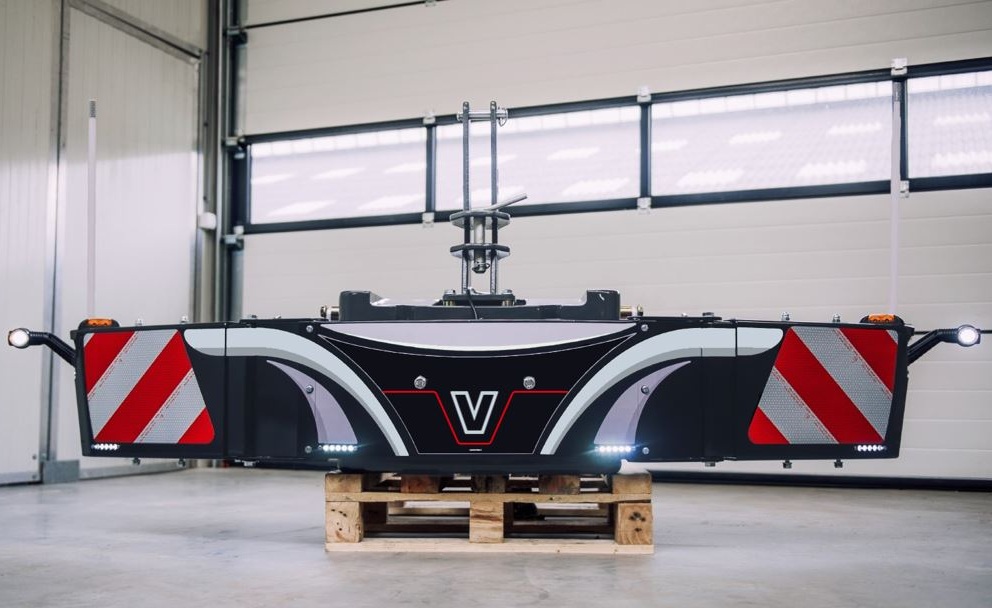

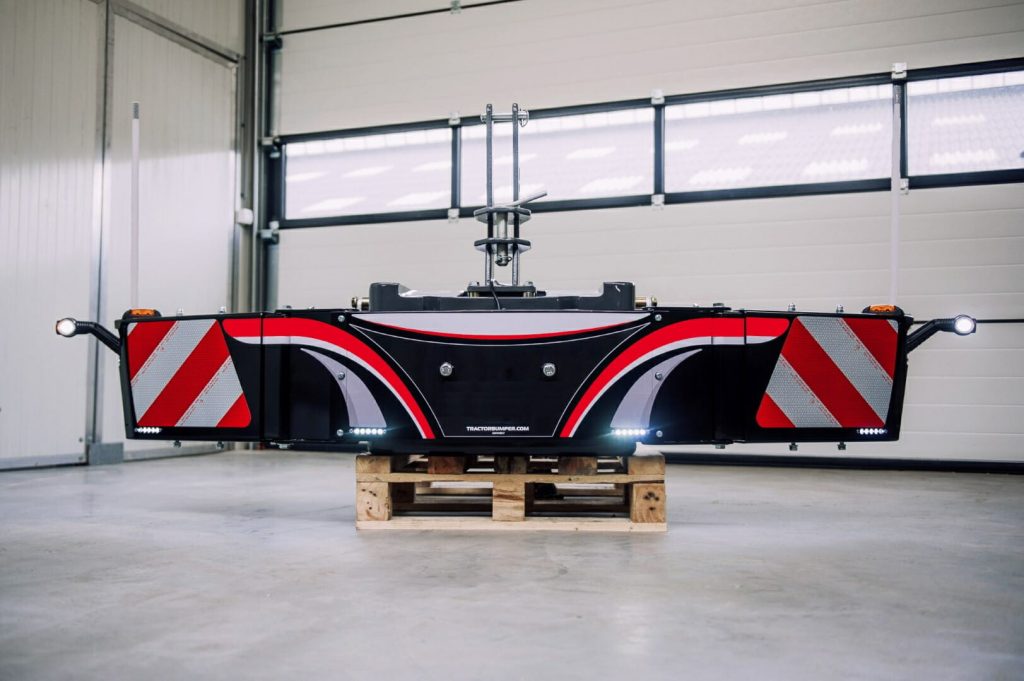

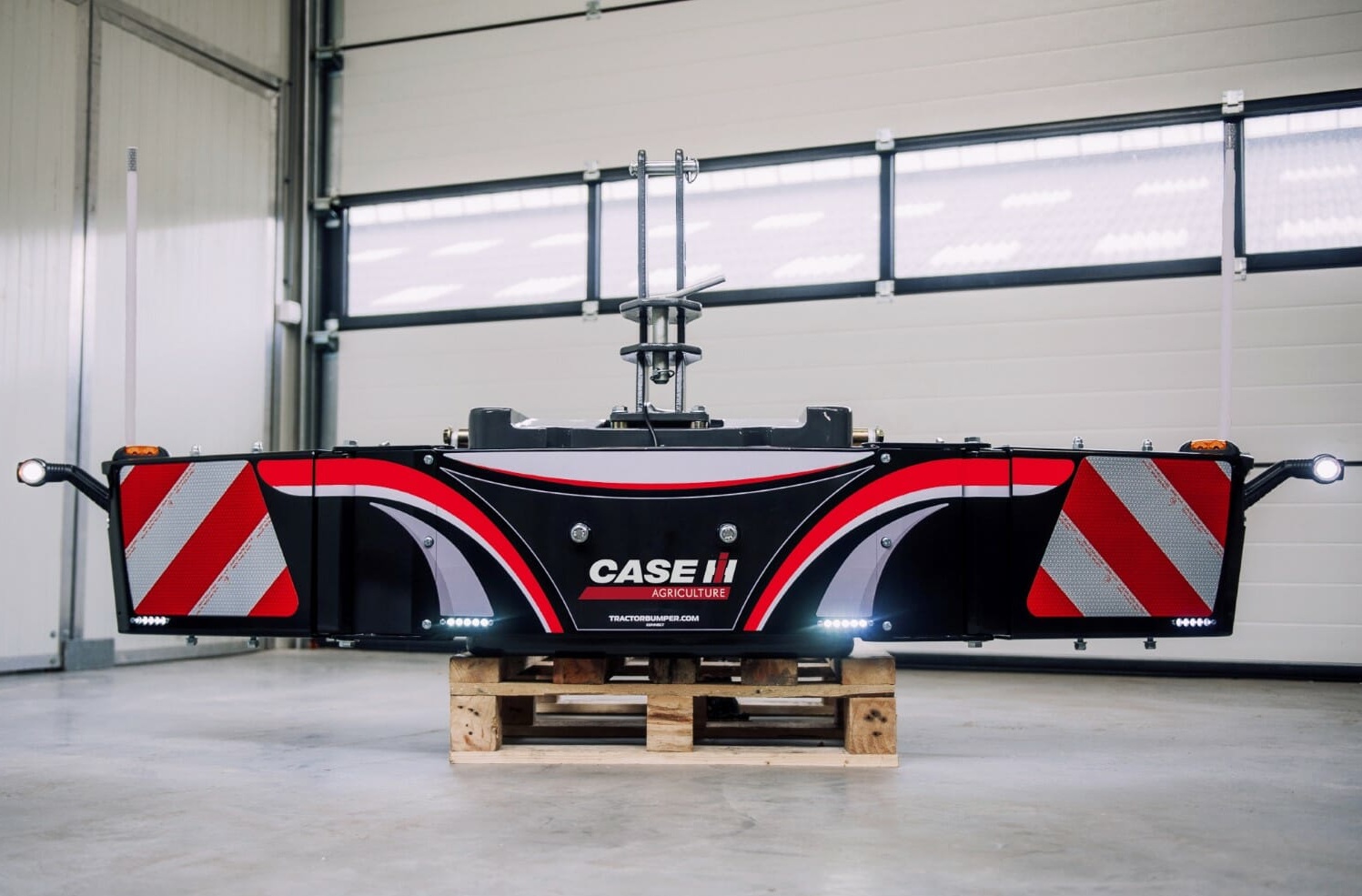

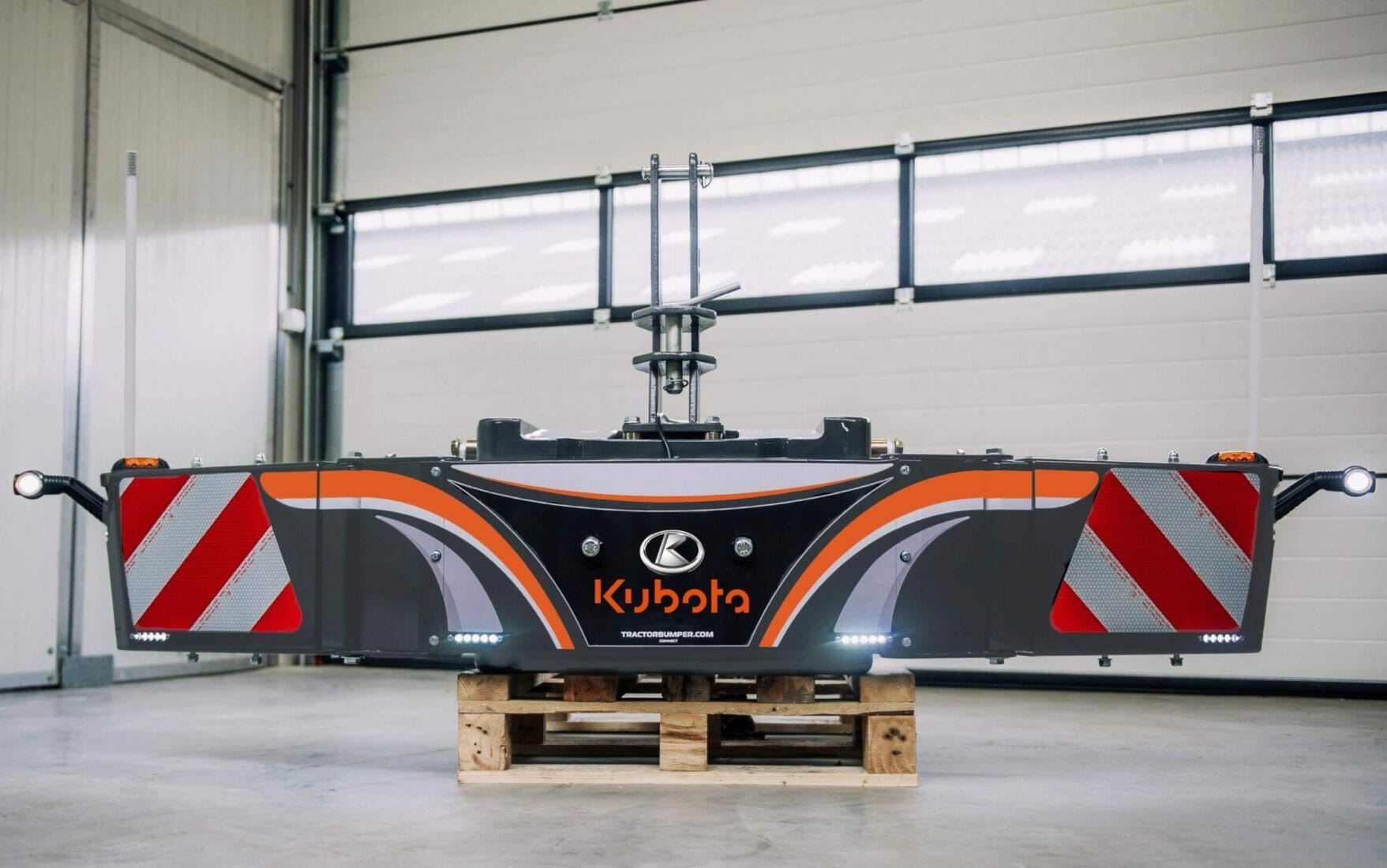

Make your TractorBumper your own with customised branding. As standard, Connect includes smart, flowing decals that really bring the bumper to life. Decals can be applied in colours to match your tractor brand or your company’s own colours. If you wish, you can also have your company logo or your tractor brand logo added to the decals set at no extra cost.

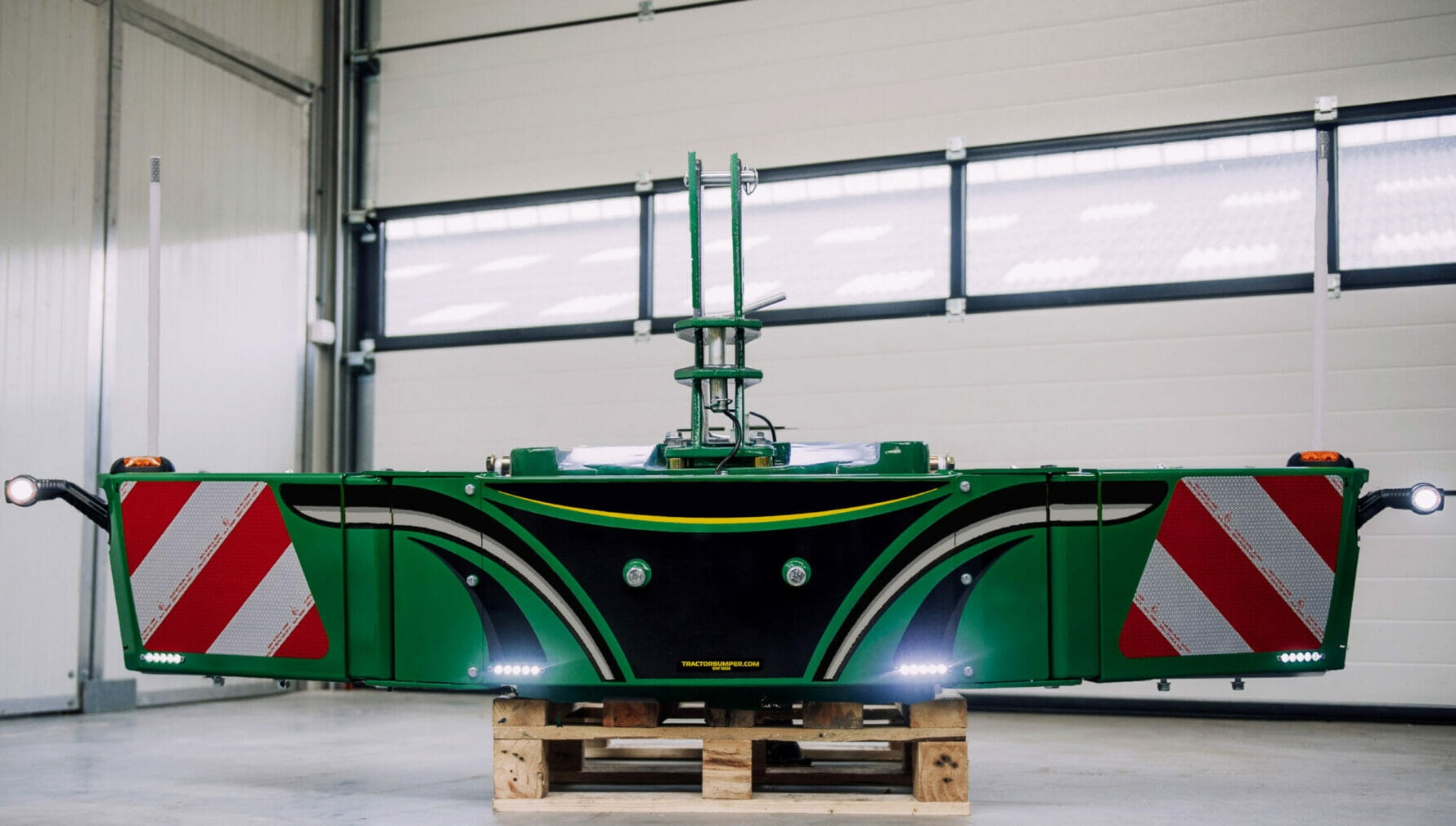

Brand decaling can be applied to bumpers finished in the standard colours of black, AGCO grey or John Deere green. Bumpers in a range of different RAL colours are also available as an option.
Download the brochure for more details about the TractorBumper range.
